Portable metal detectors can be divided into several types on the basis of their
purpose and technical characteristics.
Most small-sized ones are the so-called compact metal detectors.
They are sometimes also called pocket metal detectors because they fit
easily into a coat pocket, and some of them - even in trouser pocket.
Compact metal detectors are designed to detect metallic objects at a relatively small
distance, usually not more than 10 cm. This distance depends on
the size of the metal object, but even for a very large
object, like a car, this distance does not exceed 0.5 - 1 m. Sure,
ground metal detectors can detect metal at several times larger
distances, but also compact metal detectors have their own
advantages. In addition to small size and
weight it's usually a low power consumption, as well as the ability to
detect small metal objects which are inaccessible for ground metal detectors.
There is a wide range of models of compact metal detectors in the world.
They are presented in the model lineups
of many leading companies. The most common type of compact metal detectors perhaps are pinpointers.
Another, also quite widespread variety, are compact metal detectors in a
rectangular case. There are also more exotic species such as needle detectors.
Each of these types has both advantages
and disadvantages, and takes its own sphere of application. The main advantage of
needle detectors is low price, pinpointers
allow to explore the narrow cavities
and crevices, and rectangular shaped metal detectors have the largest detection distance.
Compact metal detector CMD-10 produced by our company belongs to the last of enumerated types.
Also among the representatives of this species can be called: Garrett Enforcer G-2, Adams TZ-20,

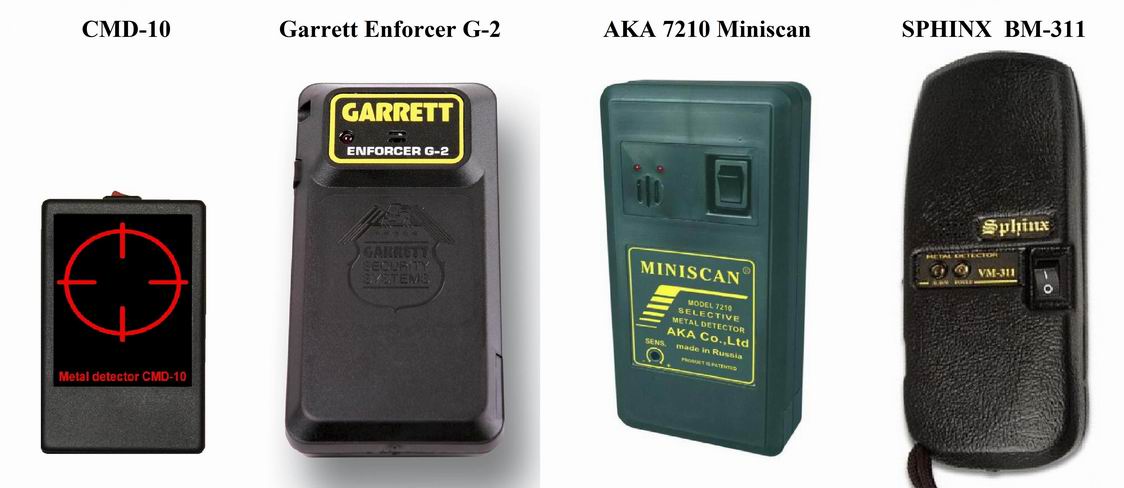

AKA 7210 Miniscan, SPHINX VM-311, etc. The appearance of some of them is shown below:

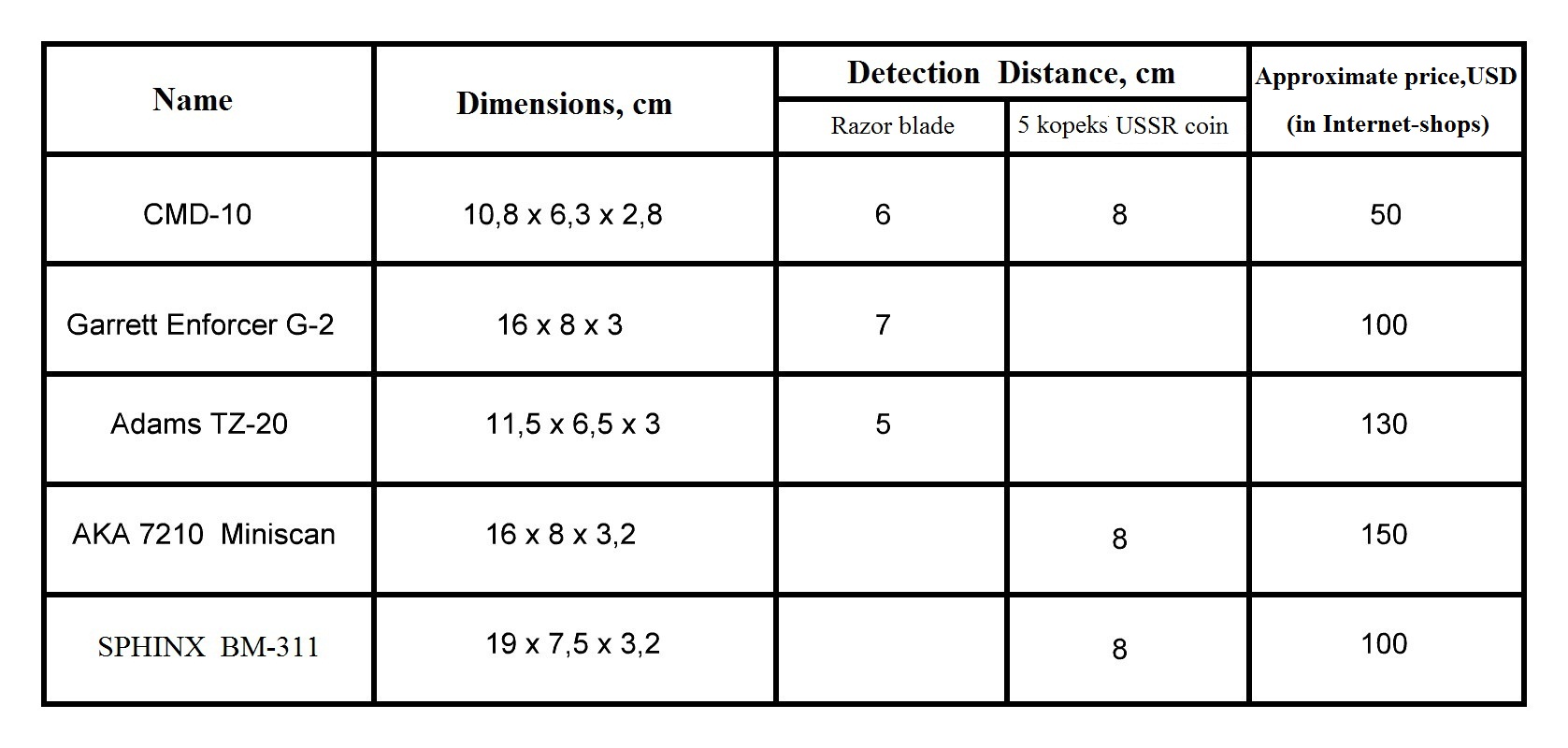

Comparing dimensions, distance of detection and prices of some metal detectors is given in the table below:
Analyzing the enclosed table, we can say that our CMD-10 looks good on the background of more famous analogues.
It has a smaller size, but the sensitivity is not worse than others, and if you compare the prices,
we can say that CMD-10 just beyond comparison.
To order CMD-10, as well as express your comments and suggestions please send us an email:
cmetdet@ukr.net
Compact metal detector CMD-10 is a modern instrument with unique characteristics.
Despite its small size and weight CMD-10 has a high sensitivity, low power consumption
and good detects objects of any type of metal.
CMD-10 is fully automatic and does not require manual adjustment.
The microprocessor control system provides adjustment for maximum sensitivity in all environmental conditions.
Operating temperature range of CMD-10 is very wide and is mainly determined by the temperature range of the battery.
CMD-10 can be used:
- in the security services, the customs to detect weapons and firearms, smuggling of goods;
- in the military medicine to localize bullets and fragments in the human body;
- in construction for locating metal pipes, rebar, wiring search;
- in archeology, etc.
SPECIFICATIONS:
Detection distance in air (+/- 10%):
- max detection distance - 50 cm
- steel plate 100x100x1 mm - 14 cm;
- 5 kopeks USSR coin - 8 cm;
- gold ring (diameter 20 mm) - 8 cm;
- razor blade - 6 cm;
- 8 cm long needle - 5 cm;
- M3 nut - 2 cm.
Battery - 9 Volt.
Max active mode current (no detection) - 6 mA.
Tuning - Automatic.
Alarm indication - Audio, visual.
Operating Temperature - -10 to +40 C
Dimensions - 10.8 cm x 6.3 cm x 2.8 cm
Weight (including battery) - 130 g.
User manual (PDF) - http://cmetdet.at.ua/cmd-10-manual.pdf
Test of metal detector CMD-10 (Video 1, switch on subtitles please):
Test of metal detector CMD-10 (Video 2):
To order CMD-10, as well as express your comments and suggestions please send us an email:
cmetdet@ukr.net
